CHASSIS: Spartan Gladiator MFD - 10 in Raised Roof
ENGINE: Cummins X12 - 525 HP
PUMP: Waterous CSUC22 - 1500 GPM
OPERATOR'S PANEL: Top Mount
WATER TANK: 1000 Gallon Poly
FOAM TANK: 80 Gallon Class "B" (Integral)
NFPA LIGHTING: Whelen
GENERATOR: 10 kW Harrison Hydraulic
FEATURES: Air Primer
   Rear-facing EMS compartment in Cab
   Air Primer with (3) Remote Locations
   6 in. Swivel Front Suction
   Roll-Up Doors on Body Compartments
   Rear Stainless Steel Access Ladder
   Powered Suction Hose Bracket
   Pull-Out Speedy Dry Hoppers in Rear Wheel Skirts
   SCBA Bottle Comaprtments in Rear Wheel Skirts
   Rear Traffic Control Light
   6-Head Will-Burt Light Tower
   Electric Rewind Reel for 150 ft. of 10/3 Electric Cord

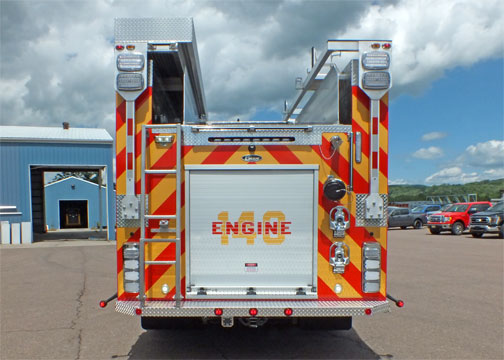

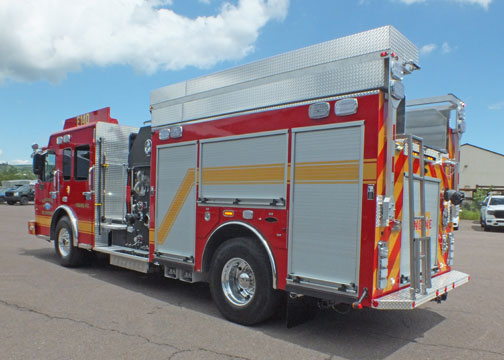

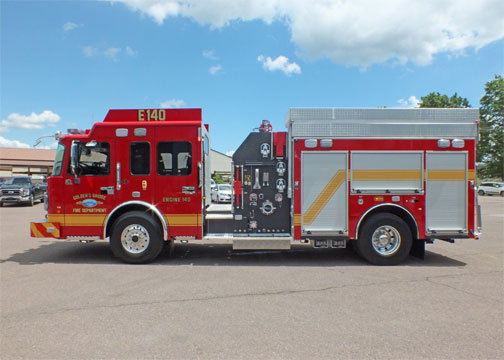

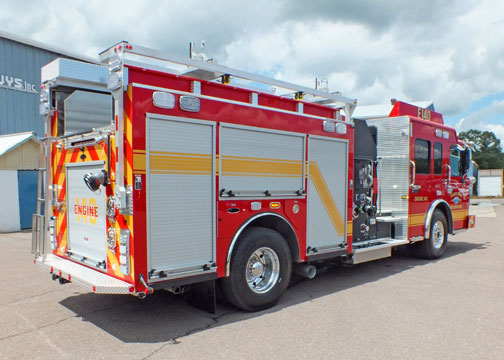

Left Side	Left Rear	Rear	Right Rear

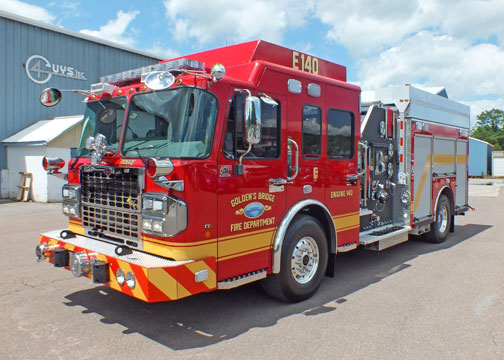

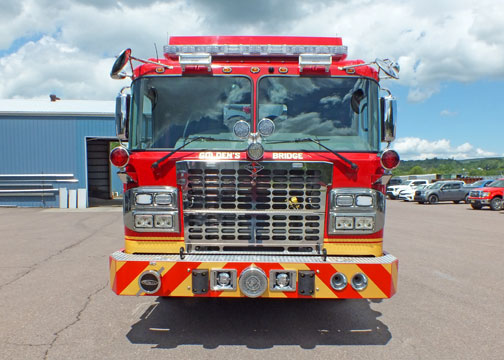

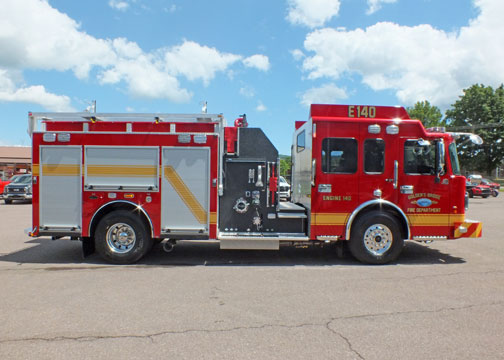

Right	Right Front	Front	Left Front
